Launch Upright Bike
Equipped with a low step-over height and a 15-position ergonomic seat, individuals of all ages and fitness levels can indulge in a seamless and comfortable ride.
Consoles:
Features:
- Self-generating capability (LED console only)
- 30 Resistance Levels
- Ergonomic Seat with 15 positions
Technical Specifications
Power Source
Self-Generating (110V required with non-LED consoles)
Cord Length
10′ / 3.0 M
Frame Construction
Robotically Welded Heavy-Gauge Steel
Drive System
Dual Stage Drive System with Poly-V Belts
Crank
1-Piece Forged Steel Crank System with Sealed Bearings
Resistance Source
Hybrid Self-Generating Brake
Resistance Levels
30
Pedals
Dual Sided and Weighted with Integrated Ratcheting Strap
Seat
Ergonomic Seat with 15 Position Settings
Handlebar Design
Multi-Position With Moisture Resistant Coating
Contact Heart Rate Monitoring
Yes
Available Consoles
UNITE 16″
Yes
UNITE 10″
Yes
UNITE LED
Yes
Workouts
Unite 22″, Unite 16″ and Unite 10″ Consoles
10K, 5K, CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, DRAW YOUR OWN, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL, VIRTUAL RIDE
Unite LED Console
10K, 5K, CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL
Extras
Accessories
Reading Rack/Water Bottle Holder/Tablet Holder
Physical Specifications
Dimensions (L x W x H)
44″ L x 26″ W x 58″ H / 111 cm x 66 cm x 147 cm
Machine Weight
139 lbs / 63 kg
Shipping Weight
153 lbs / 69 kg
Maximum User Weight
400 lbs / 181 kg
Portability
2 Front Transport Wheels
Step-Over Height
19″ / 48.25 cm
Entertainment & Connectivity
Displays
Track, Graph, Screensaver Images, Outside Interactive Videos, Apps, TV & Internet (if connected)
3.5 mm Headphone Jack
Yes
Bluetooth®
Headphones, Heart Rate Strap, and Polar Devices
Heart Rate Control
Yes
Internet Connection – WiFi/Ethernet (Ethernet Recommended)
Yes
Mirroring (via user-provided cable)
Yes
GMS (Google Mobile Services)
Yes
FTMS Compatible (GymTrakr, Zwift, Kinomap, ROUVY, & TrainerRoad)
Yes
EGYM Cardio Connect Compatible
Yes
GEM Module for 3rd Party App Connectivity
Yes
Screensaver Images (promote classes, facility news, promotions, etc.)
Yes
Wireless Charging
Yes
USB Ports
Yes
Apple GymKit / GEM NFC Module
Yes
Tablet Holder / Reading Rack
Yes
Asset Management – EcoFit
Yes
Tuner
Optional
IPTV
Yes
IPTV
Yes
Front HDMI
Yes
Rear HDMI
Yes
CSAFE
Yes
Programming Treadmills, Climber, Ellipticals, & Bikes
Programs Unique to Product (See Product Sheets for Details)
Yes
Heart Rate Control Programs
Yes
HRC Cruise Control
Yes
Outside Interactive Videos
Yes
Fitness Tests (See Product Sheets for Specific Workouts)
Yes
Treadmills Total Workouts
24-25
Climber Total Workouts
15
Ellipticals Total Workouts
17
Bikes Total Workouts
16
Saved Workouts (Default Set to Off)
5
Programming Cross Trainers, Recumbent Ellipticals, LateralX, & XT-One
Programs Unique to Product (See Product Sheets for Specific Workouts)
Yes
Workout Boosters (See Product Sheets for Specific Workouts)
Yes
Heart Rate Control Programs
Yes
HRC Cruise Control
Yes
Outside Interactive Programs
Yes
Cross Trainers Total Workouts
18
Recumbent Ellipticals Total Workouts
18
LateralX Total Workouts
18
XT-One Total Workouts
18
Saved Workouts – Defaulted Off
5
Power Conservation
ERP Mode (Sleep Mode)
Yes
Service
Software Update via USB (USB-A port not designed for use with Apple devices)
Yes
Software Update via Network (OTA)
Yes
Self Diagnostics
Yes
Locked Back End (Maintenance Mode)
Yes
Languages
Languages
English, German, Arabic, Spanish, Chinese, French, Russian, Dutch, Portuguese, Italian, Japanese, Korean, Swedish
Product Availability
Product Availability
All commercial cardio models
Warranty
Limited-Use Commercial Warranty
Frame – 7 Years | Parts – 5 Years | Labor – 1 Year
Console Options
TRUE Fitness’ suite of cardio consoles lets you customize your commercial fitness equipment to both your facility and your users. Explore our offerings and features to find what best fits your needs.

UNITE LED Console
User-friendly interface and enhanced functionality with a sleek and streamlined design.

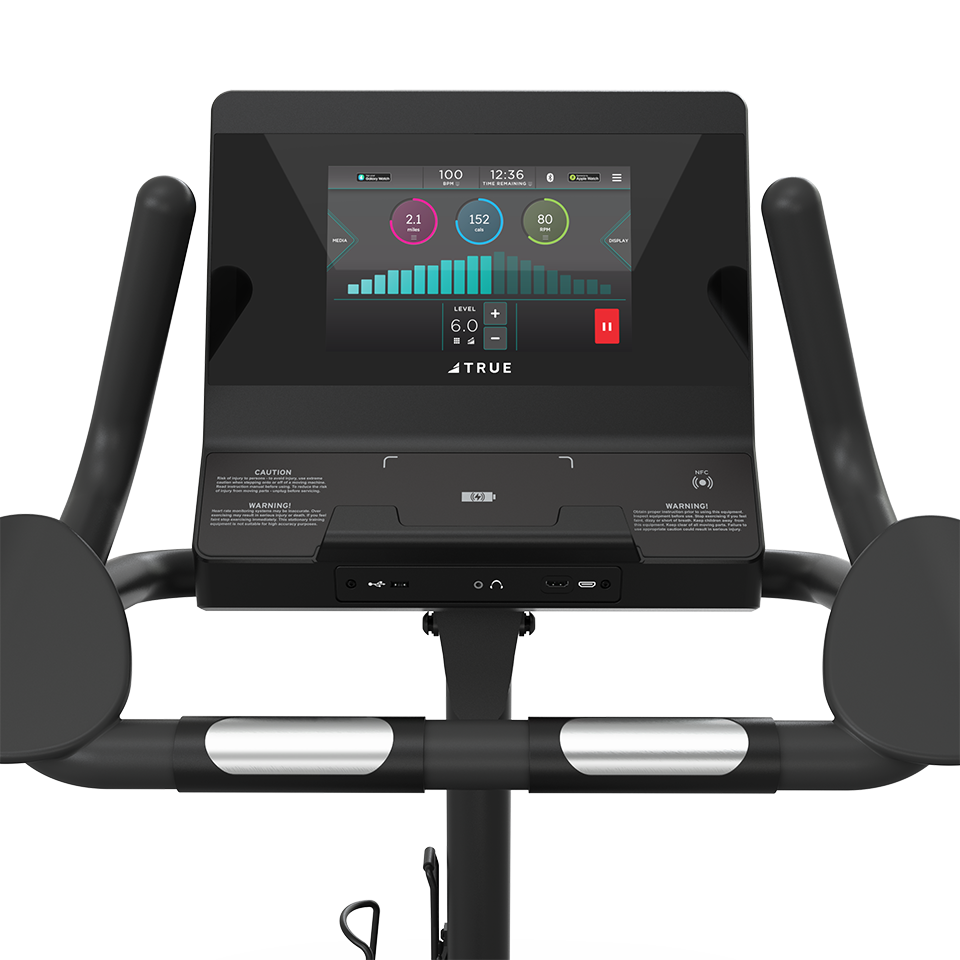

UNITE 10” Touchscreen Console
Vivid screen and improved performance and features, on a 10” scale.

UNITE 16” Touchscreen Console
With advanced features, it’s the perfect companion for achieving fitness goals with style and efficiency.
Compare Consoles
