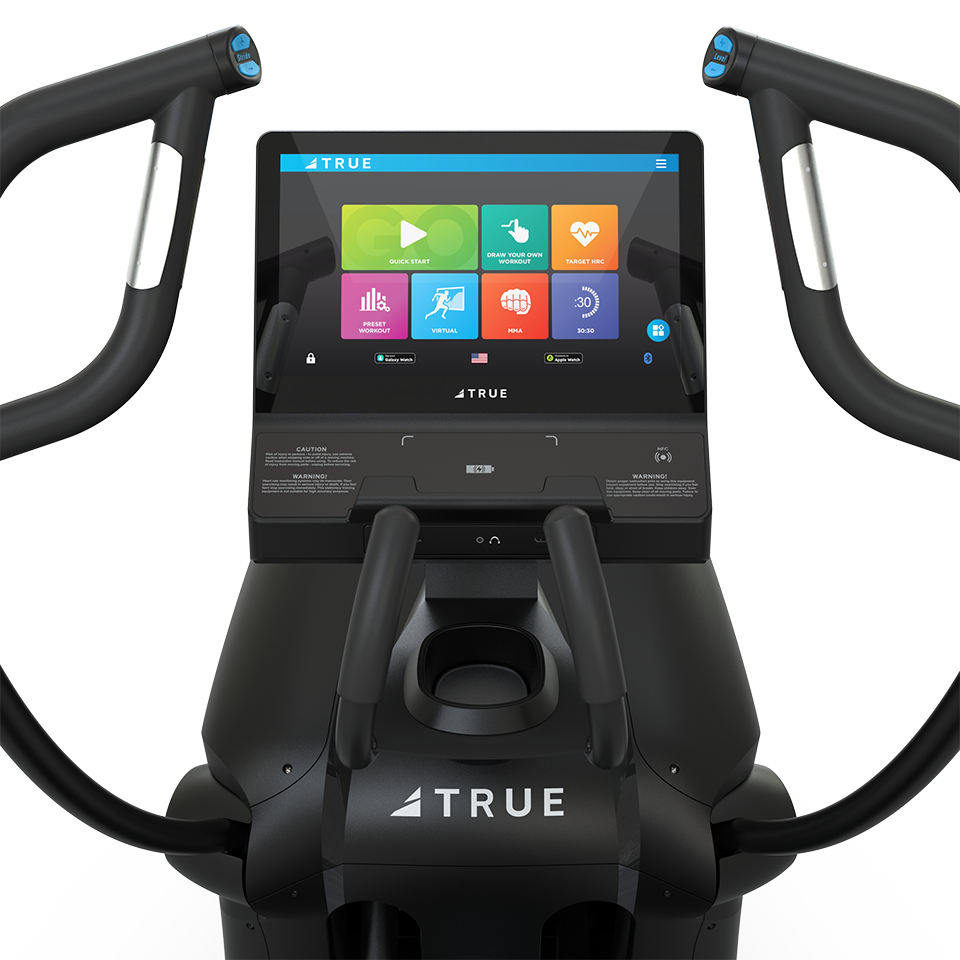

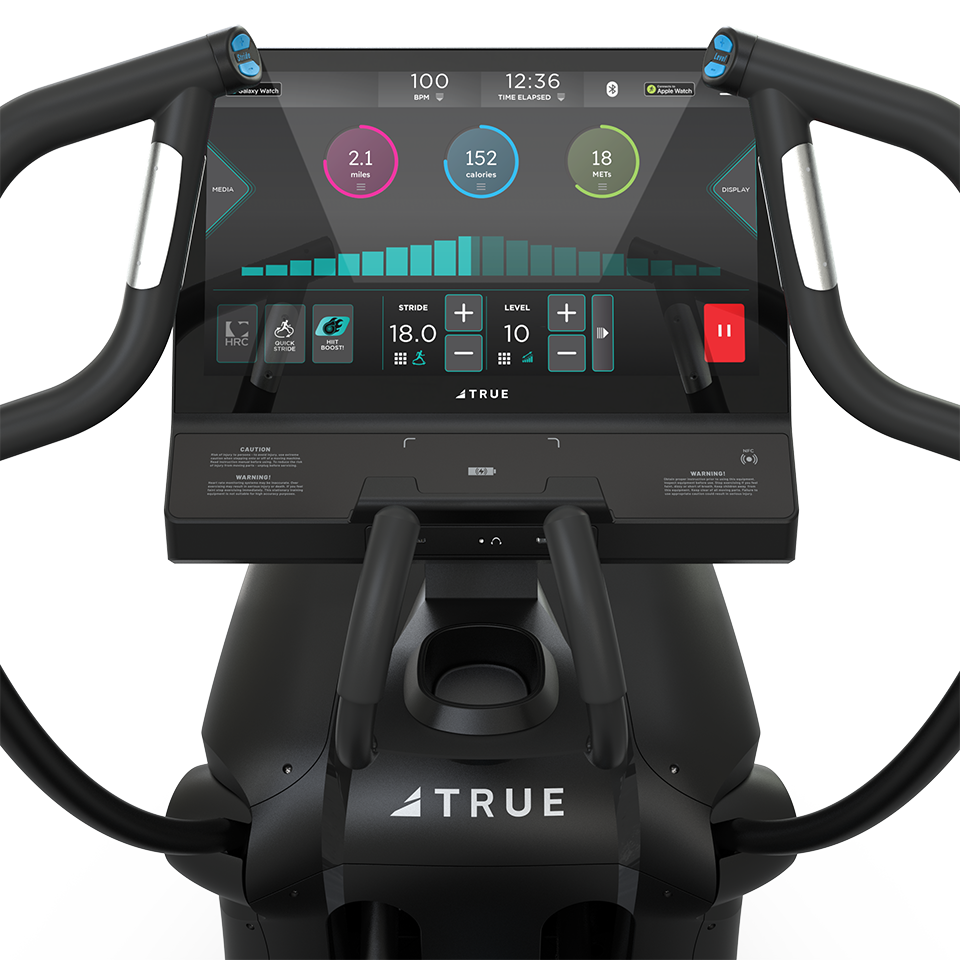

Apex Cross Trainer
Designed based on precise human biomechanics, the Apex Cross Trainer delivers comfortable natural movement and flow, both forward and backward. With MultiGrip handlebars, users can target different upper body muscles simply by changing the grip; and Converging Path handlebars follow the natural path of the arms when walking or running.
Customize to both your facility and your users with four UNITE console options.
Features:
- Electronically adjustable stride from 20”- 28”
- SmartStride® technology
- Close pedal spacing
- Low step-up height
- Advanced training 30:30 and MMA
Technical Specifications
Power Source
Self-Generating (100-220V required with non-LED consoles)
Cord Length
12′ / 3.7M
Frame Construction
Robotically Welded Heavy-Gauge Steel
Quick Access Control
Yes, fingertip controls on moving handle bars
Drive System
Front Drive
Resistance Source
Hybrid Self-Generating Brake
Resistance Levels
30
Handlebar Design
Converging Arms
Footpad
Molded Footpad
Contact Heart Rate Monitoring
Yes
Quiet Motor
Yes
Electronically Adjustable Stride
Yes
SmartStride® Technology
Yes
Adjustable Stride Length
20″ – 28″ / 51 cm – 71 cm
Pedal Spacing
1.8″ / 4.6 cm
Moving Handlebars Lock Out Option
Yes
Covered Track and Rollers
Yes
MultiGrip and Converging Path Exercise Arms
Yes
Available Consoles
UNITE 22″
Yes
UNITE 16″
Yes
UNITE 10″
Yes
UNITE LED
Yes
Workouts
Unite 22″, Unite 16″ and Unite 10″ Consoles
10K, 30:30, 5K, CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, DRAW YOUR OWN, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, MMA, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL, VIRTUAL RUNS
Unite LED Console
10K, 30:30, 5K, CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, MMA, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL
Workout Boosters
UNITE 22″, UNITE 16″, UNITE 10″, and UNITE LED Consoles — X-MODE, GLUTEKICKER, ARMBLASTER
Total Body Workout
Upper Body Isolation
Yes
Lower Body Isolation
Yes
Total Body
Yes
Safety
Side Steps
Optional
Extras
Accessories
Water Bottle Holder, Reading Rack/Tablet Holder
Physical Specifications
Dimensions (L x W x H)
77’’ x 33’’ / 196cm x 84cm
Footprint with Side Steps
87″ x 40″ / 221 cm x 102 cm
Machine Weight
364lbs / 165kg
Shipping Weight
408lbs / 185kg
Maximum User Weight
400 lbs / 181 kg
Portability
2 Front Transport Wheels
Active Footprint
87″ x 37″ / 221cm x 94cm
Entertainment & Connectivity
Displays
Track, Graph, Screensaver Images, Outside Interactive Videos, Apps, TV & Internet (if connected)
3.5 mm Headphone Jack
Yes
Bluetooth®
Headphones, Heart Rate Strap, and Polar Devices
Heart Rate Control
Yes
Internet Connection – WiFi/Ethernet (Ethernet Recommended)
Yes
Mirroring (via user-provided cable)
Yes
GMS (Google Mobile Services)
Yes
FTMS Compatible (GymTrakr, Zwift, Kinomap, ROUVY, & TrainerRoad)
Yes
EGYM Cardio Connect Compatible
Yes
GEM Module for 3rd Party App Connectivity
Yes
Screensaver Images (promote classes, facility news, promotions, etc.)
Yes
Wireless Charging
Yes
USB Ports
Yes
Apple GymKit / GEM NFC Module
Yes
Tablet Holder / Reading Rack
Yes
Asset Management – EcoFit
Yes
Tuner
Optional
IPTV
Yes
IPTV
Yes
Front HDMI
Yes
Rear HDMI
Yes
CSAFE
Yes
Programming Treadmills, Climber, Ellipticals, & Bikes
Programs Unique to Product (See Product Sheets for Details)
Yes
Heart Rate Control Programs
Yes
HRC Cruise Control
Yes
Outside Interactive Videos
Yes
Fitness Tests (See Product Sheets for Specific Workouts)
Yes
Treadmills Total Workouts
24-25
Climber Total Workouts
15
Ellipticals Total Workouts
17
Bikes Total Workouts
16
Saved Workouts (Default Set to Off)
5
Programming Cross Trainers, Recumbent Ellipticals, LateralX, & XT-One
Programs Unique to Product (See Product Sheets for Specific Workouts)
Yes
Workout Boosters (See Product Sheets for Specific Workouts)
Yes
Heart Rate Control Programs
Yes
HRC Cruise Control
Yes
Outside Interactive Programs
Yes
Cross Trainers Total Workouts
18
Recumbent Ellipticals Total Workouts
18
LateralX Total Workouts
18
XT-One Total Workouts
18
Saved Workouts – Defaulted Off
5
Power Conservation
ERP Mode (Sleep Mode)
Yes
Service
Software Update via USB (USB-A port not designed for use with Apple devices)
Yes
Software Update via Network (OTA)
Yes
Self Diagnostics
Yes
Locked Back End (Maintenance Mode)
Yes
Languages
Languages
English, German, Arabic, Spanish, Chinese, French, Russian, Dutch, Portuguese, Italian, Japanese, Korean, Swedish
Product Availability
Product Availability
All commercial cardio models
Warranty
Frame
7 Years
Parts
3 Years
Labor
2 Years
Console Options
TRUE Fitness’ suite of cardio consoles lets you customize your commercial fitness equipment to both your facility and your users. Explore our offerings and features to find what best fits your needs.
UNITE LED Console
User-friendly interface and enhanced functionality with a sleek and streamlined design.
UNITE 10” Touchscreen Console
Vivid screen and improved performance and features, on a 10” scale.
UNITE 16” Touchscreen Console
With advanced features, it’s the perfect companion for achieving fitness goals with style and efficiency.
Unite 22” Touchscreen Console
Being the largest console option, the 22″ vibrant screen enhances visibility and delivers unmatched clarity and interactivity.
Compare Consoles
Explore Apex cross trainer Features
click on the PLUS signs to learn more
