Gravity Elliptical
Provide your members versatile, low-impact workouts with the dependable Gravity Elliptical. The small and compact footprint allows you to maximize your floor space, while the patented Core Drive® provides users a workout that feels stable and natural.

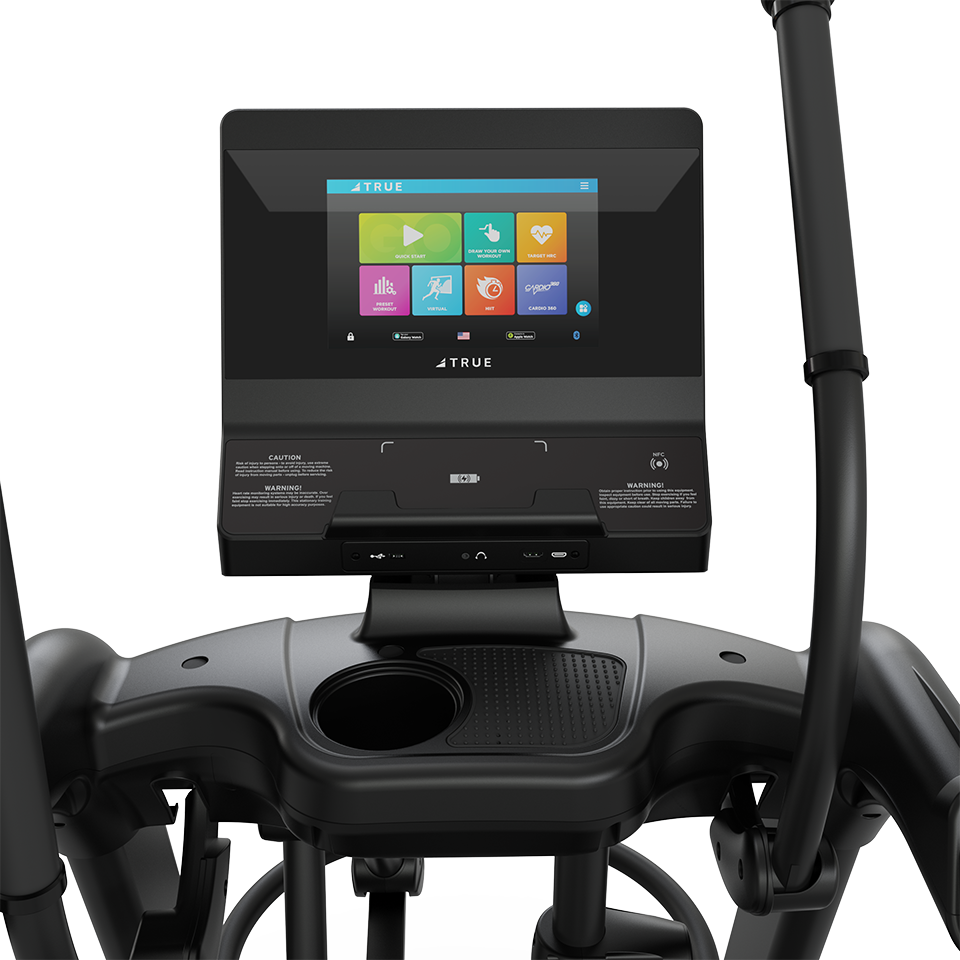

Customize to both your facility and your users with four UNITE console options.
Features:
- Self-Generating (LED console only)
- Core Drive® System
- Cardio 360™ Programming
- Hybrid Self-Generating Brake
- 21” Stride Length
- Low Step-Up Height
Technical Specifications
Power Source
Self-Generating (110V required with non-LED consoles)
Cord Length
12′ / 3.7 M
Frame Construction
Robotically Welded Heavy-Gauge Steel
Handrail Design
Extended Handrails with Moisture-Resistant Grips
Drive System
Core Drive®
Resistance Source
Hybrid Self-Generating Brake
Resistance Levels
30
Maximum Workload
450 Watts
Stride Length
21″ / 53 cm
Footpad
Soft Step Cushioned Anti-Fatigue Material
Exercise Arms
Ergonomic Handles with Moisture-Resistant Sleeves
Side Step Design
Non-Slip Textured Pattern
Contact Heart Rate Monitoring
Yes
Available Consoles
UNITE 22″
Yes
UNITE 16″
Yes
UNITE 10″
Yes
UNITE LED
Yes
Workouts
Unite 22″, Unite 16″ and Unite 10″ Consoles
10K, 5K, CALORIE GOAL, CARDIO 360, CARDIO CHALLENGE, DISTANCE GOAL, DRAW YOUR OWN, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL, VIRTUAL RUNS
Unite LED Console
10K, 5K, CALORIE GOAL, CARDIO 360, CARDIO CHALLENGE, DISTANCE GOAL, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL
Total Body Workout
Upper Body Isolation
Yes
Lower Body Isolation
Yes
Total Body
Yes
Safety
Side Steps
Standard
Extended Handrails
Standard
Extras
Accessories
Water Bottle Holder, Accessory Tray, Reading Rack/Tablet Holder
Physical Specifications
Dimensions (L x W x H)
63″ L x 32″ W x 64″ H / 160 cm x 81cm x 163cm
Machine Weight
336 lbs / 152 kg
Shipping Weight
382 lbs / 173 kg
Maximum User Weight
400 lbs / 181 kg
Deck Step-Up Height
8″ / 20.32 cm
Portability
2 Rear Transport Wheels
Active Footprint
74″ L x 32″ W x 64″ H / 188 cm x 81.28 cm x 162.56 cm
Q-Factor
2.5″ / 6.35 cm
Step-Up Height
8″ / 20.32 cm
Entertainment & Connectivity
Displays
Track, Graph, Screensaver Images, Outside Interactive Videos, Apps, TV & Internet (if connected)
3.5 mm Headphone Jack
Yes
Bluetooth®
Headphones, Heart Rate Strap, and Polar Devices
Heart Rate Control
Yes
Internet Connection – WiFi/Ethernet (Ethernet Recommended)
Yes
Mirroring (via user-provided cable)
Yes
GMS (Google Mobile Services)
Yes
FTMS Compatible (GymTrakr, Zwift, Kinomap, ROUVY, & TrainerRoad)
Yes
EGYM Cardio Connect Compatible
Yes
GEM Module for 3rd Party App Connectivity
Yes
Screensaver Images (promote classes, facility news, promotions, etc.)
Yes
Wireless Charging
Yes
USB Ports
Yes
Apple GymKit / GEM NFC Module
Yes
Tablet Holder / Reading Rack
Yes
Asset Management – EcoFit
Yes
Tuner
Optional
IPTV
Yes
IPTV
Yes
Front HDMI
Yes
Rear HDMI
Yes
CSAFE
Yes
Programming Treadmills, Climber, Ellipticals, & Bikes
Programs Unique to Product (See Product Sheets for Details)
Yes
Heart Rate Control Programs
Yes
HRC Cruise Control
Yes
Outside Interactive Videos
Yes
Fitness Tests (See Product Sheets for Specific Workouts)
Yes
Treadmills Total Workouts
24-25
Climber Total Workouts
15
Ellipticals Total Workouts
17
Bikes Total Workouts
16
Saved Workouts (Default Set to Off)
5
Programming Cross Trainers, Recumbent Ellipticals, LateralX, & XT-One
Programs Unique to Product (See Product Sheets for Specific Workouts)
Yes
Workout Boosters (See Product Sheets for Specific Workouts)
Yes
Heart Rate Control Programs
Yes
HRC Cruise Control
Yes
Outside Interactive Programs
Yes
Cross Trainers Total Workouts
18
Recumbent Ellipticals Total Workouts
18
LateralX Total Workouts
18
XT-One Total Workouts
18
Saved Workouts – Defaulted Off
5
Power Conservation
ERP Mode (Sleep Mode)
Yes
Service
Software Update via USB (USB-A port not designed for use with Apple devices)
Yes
Software Update via Network (OTA)
Yes
Self Diagnostics
Yes
Locked Back End (Maintenance Mode)
Yes
Languages
Languages
English, German, Arabic, Spanish, Chinese, French, Russian, Dutch, Portuguese, Italian, Japanese, Korean, Swedish
Product Availability
Product Availability
All commercial cardio models
Warranty
Frame
7 Years
Parts
3 Years
Labor
1 Year
Limited-Use Commercial Warranty
Frame – 7 Years | Parts – 5 Years | Labor – 2 Years
Console Options
TRUE Fitness’ suite of cardio consoles lets you customize your commercial fitness equipment to both your facility and your users. Explore our offerings and features to find what best fits your needs.
UNITE LED Console
User-friendly interface and enhanced functionality with a sleek and streamlined design.
UNITE 10” Touchscreen Console
Vivid screen and improved performance and features, on a 10” scale.
UNITE 16” Touchscreen Console
With advanced features, it’s the perfect companion for achieving fitness goals with style and efficiency.
Unite 22” Touchscreen Console
Being the largest console option, the 22″ vibrant screen enhances visibility and delivers unmatched clarity and interactivity.
