Palisade Climber
Offering premier safety features, best-in-class serviceability, and versatile ease of use, TRUE’s Palisade Climber has been crafted to be rich in experience for exercisers and easy to maintain for your facility. The Palisade Climber challenges users to push their limits and achieve their fitness goals as they climb the moving stairs. Users can choose from 20 resistance levels to customize their workout intensity according to their abilities; you can easily change the resistance level with buttons on the handlebars.
Consoles:
Features:
- One of the deepest steps in the industry, with 217 sq. inches per step
- AC motor for durability, low noise, and smooth motion
- Step-up assistance with rear steps and integrated side pegs
- Dual-braking system for extra safety
TECHNICAL SPECIFICATIONS
Power Source:
120V & 220V w/ step-up and step-down transformers (NEMA 5-15)
Cord Length:
12′ / 3.7M
Drive System:
AC Drive system
Resistance Source:
Double-Braking System
Resistance Levels:
20
Frame Construction:
Anti-rust design with sweat prevention
Sweat Tray:
Optional
Step-Up Platform:
Rear, Side, & Dipping Handrail
Safety System:
Additional Photo-Interrupt Safety Sensor
Quick Access Control:
(1) Resistance Level thumb switch (Left) and (1) Stop/Pause thumb switch (Right)
Contact Heart Rate Monitoring:
Yes
AVAILABLE CONSOLES
Console Options
Unite 16″, Unite 10″, and Unite LED
WORKOUTS
Unite 16″ and Unite 10″ Consoles:
CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, DRAW YOUR OWN, FAT BURN, FIREFIGHTER, FLOORS, HRC CRUISE CONTROL, MONUMENT WORKOUT, QUICK START, ROLLING HILLS, SPEED INTERVALS, TARGET HRC, TIME GOAL, VIRTUAL RUNS
LED Console:
CARDIO CHALLENGE, CALORIE GOAL, DISTANCE GOAL, FAT BURN, FIREFIGHTER, FLOORS, HRC CRUISE CONTROL, QUICK START, ROLLING HILLS, SPEED INTERVALS, TARGET HRC, TIME GOAL
EXTRAS
Accessories:
Water Bottle Holders (2), Accessory Tray, Over Molded Reading Rack/Tablet Holder
PHYSICAL SPECIFICATIONS
Dimensions:
60.4″ x 31.5″ x 87.5″ / 153 cm x 80 cm x 222 cm
Machine Weight:
408 lbs / 185 kg
Shipping Weight:
518 lbs / 235 kg
Maximum User Weight:
400 lbs / 181 kg
Step Dimensions:
11.2” x 20” x 8” / 28 cm x 51 cm 20 cm
Step-Up Height:
13.3” / 34 cm
Minimum Ceiling Height Recommendation:
10 feet
Portability:
Four (4) Transport Wheels
FULL COMMERCIAL WARRANTY
Frame:
7 Years
Parts:
3 Years
Labor:
2 Years
Console Options
TRUE Fitness’ suite of cardio consoles lets you customize your commercial fitness equipment to both your facility and your users. Explore our offerings and features to find what best fits your needs.

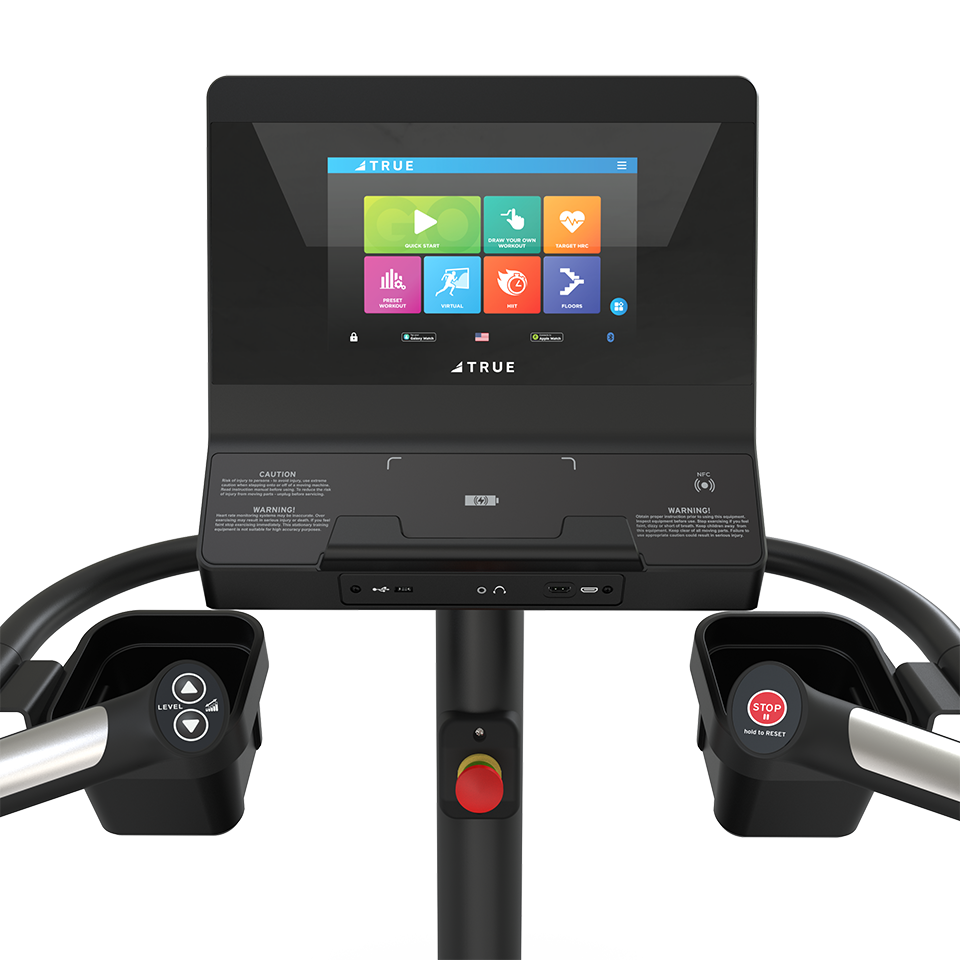

Unite LED Console
User-friendly interface and enhanced functionality with a sleek and streamlined design.
Unite 10” Touchscreen Console
Vivid screen and improved performance and features, on a 10” scale.

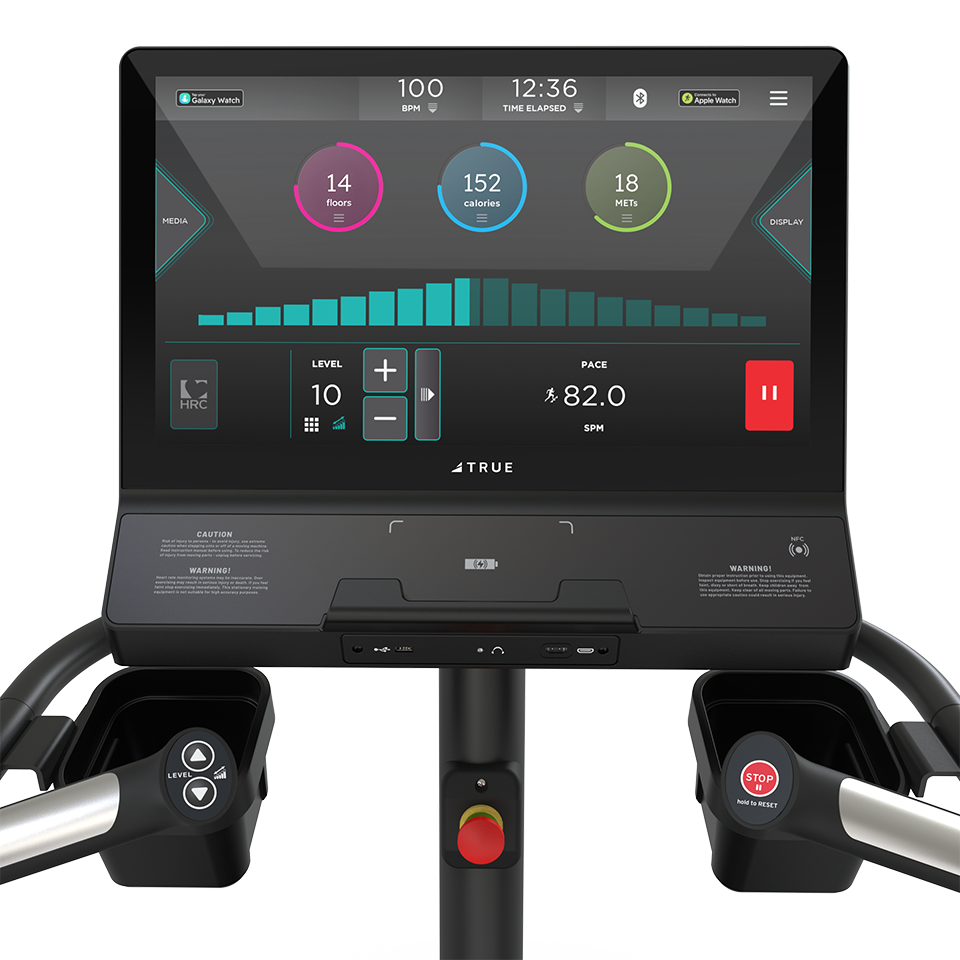

Unite 16” Touchscreen Console
With advanced features, it’s the perfect companion for achieving fitness goals with style and efficiency.
Compare Consoles
Explore Palisade climber Features
click on the PLUS signs to learn more
A Closer Look
Exceptional craftsmanship, a sleek exterior, and simplistic serviceability – TRUE’s Palisade Climber is the perfect cardio solution for clubs.
The Palisade Climber boasts one of the deepest and most robust steps in the industry. Proven to be 10x stronger than the strongest competitor’s step, we manufactured this step to reduce stress on the step rods and bearings for increased durability. The extended step length allows for better step mechanics and eliminates pinching your toes between the steps – a common problem in traditional step mills.
Multiple console options provide customizable features, technology, and asset management capabilities for enhanced user engagement that will keep your members excited to keep climbing. With TRUE’s Envision and Emerge consoles, the Palisade Climber offers superior high-intensity interval training (HIIT) workouts without the harsh impact of running.
Safety Features
The TRUE Palisade Climber was designed to meet all North American and European safety standards.
The Dual-Brake system provides the highest level of safety. The dynamic brake regulates the speed and prevents the machine from over-speeding, while the mechanical brake locks steps while not in use.
Integrated infrared sensors on the bottom of the machine will stop and lock stairs if a person or object is detected. A photo-interrupt safety sensor is an available feature that will lock the mechanical brake if any unsuspecting item breaks the plane on the sensor.
The TRUE Palisade Climber also offers step-up assistance, including rear steps, integrated side rails, and a dipping handrail, ensuring it is suitable for users of all fitness levels.
Our Palisade Climber is a simplistic design that was designed with users, club owners, and service technicians in mind to fill the gap that current climbers lack, especially in serviceability.
Instead of accessing components between the steps, we decided it was more critical to have components readily available for the Palisade.
Palisade’s fixed transportation wheels allow the machine to be easily moved without tools for quicker service access. The removable front panel also allows easier access to the electrical, drive, and resistance systems for maintenance or service.
Health Benefits
In addition to the abundant premium features, the Palisade Climber is a great machine for torching calories, improving cardiovascular health, and strengthening multiple muscle groups. With each step, actively engage your quads, hamstrings, glutes, core, and calves!
